The WSR-88D network of about 160 NEXRAD radars scans the atmosphere
continuously, each radar completing a volume, a stack of conical sweeps at
rising elevations, every four to ten minutes. The raw Level II data, with
reflectivity, radial velocity, and the dual-polarization moments for every
gate, are archived by NOAA and Unidata in the public unidata-nexrad-level2
S3 bucket from 1991 on. One file is one radar's one volume.
This walkthrough pulls the KTLX (Oklahoma City) volume that began nearest
20:00 UTC on 6 May 2024, hours before that evening's tornadoes, opens its
lowest sweep, and uses the correlation coefficient to tell weather from
everything else the radar sees. It needs usdata[radar] and matplotlib,
downloads one file of about 9.6 MB, and runs in a few seconds.
from datetime import UTC, datetime
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import xarray as xr
import xradar
import usdata
from usdata import cite_lockfile, pull, verify
# One figure style for every usdata notebook, so previews look alike.
plt.rcParams.update(
{
"figure.figsize": (8, 4.5),
"figure.dpi": 120,
"axes.spines.top": False,
"axes.spines.right": False,
"axes.grid": True,
"grid.alpha": 0.3,
"font.size": 10,
}
)
manifest = Path("dataset.yaml")
print("Executed (UTC):", datetime.now(UTC).isoformat(timespec="seconds"))
print(f"usdata {usdata.__version__}; xradar {xradar.__version__}; xarray {xr.__version__}")Executed (UTC): 2026-10-09T00:11:20+00:00
usdata 0.34.0; xradar 0.12.0; xarray 2026.7.0
Select
The manifest names one radar by site id, KTLX, and asks for one volume by
time: select keeps the volume whose start is nearest 20:00 UTC on 6 May
2024, within five minutes either side. A window of volume start times would
hold a number of volumes that depends on the volume coverage pattern, one in
five minutes of clear air but two in precipitation mode; the rule keeps one
either way. That afternoon KTLX started a volume about every eight and a half
minutes, so only the one starting at 20:01:16 is within five minutes. A
geographic query or nearest picks radars by position instead of by id.
Windows span at most 31 days, and every file is fetched whole.
print(manifest.read_text())name: ktlx-one-volume
sources:
- dataset: noaa:nexrad-level2
params:
site: KTLX
select:
time: 2024-05-06T20:00:00Z
within: 5m
direction: nearest
What arrives
One Level II archive file, named for the radar and the volume's start time.
The first pull applies the rule and writes dataset.lock.json beside the
manifest, pinning the chosen file's checksum; later pulls reuse the pin and
the cache without selecting again.
result = pull(manifest)
(item,) = result.fetched
print("File:", item.path.name)
print("Bytes:", item.provenance.size)
print("Source:", item.provenance.source_url)
print("Retrieved (UTC):", item.provenance.retrieved_at.isoformat(timespec="seconds"))
print("Checksum:", item.provenance.checksum)
print("Volume start:", item.asset.time.start.isoformat())File: KTLX20240506_200116_V06
Bytes: 9622867
Source: s3://unidata-nexrad-level2/2024/05/06/KTLX/KTLX20240506_200116_V06
Retrieved (UTC): 2026-10-09T00:11:22+00:00
Checksum: sha256:de5bd64281fc57fcb3c4c4a071722221bc3d1515c5e766462178434f2c065b2c
Volume start: 2024-05-06T20:01:16+00:00
Open
The radar reader decodes with xradar
and returns an xarray DataTree: the root holds the radar's position and the
volume's metadata, and each sweep is a node. sweep=0 decodes only the
lowest sweep, which keeps memory to tens of megabytes rather than the whole
volume's hundreds. Each moment is an (azimuth, range) array: azimuth in
degrees clockwise from north, range in metres along the beam. Below-threshold
and range-folded gates are NaN, and every ray carries its own UTC time.
radar = item.open_nexrad(sweep=0)
sweep = radar["/sweep_0"].to_dataset()
moments = [name for name, data in sweep.data_vars.items() if "range" in data.dims]
print(
"Radar:",
radar.attrs["instrument_name"],
f"at {float(radar['latitude']):.3f} °N,",
f"{float(radar['longitude']):.3f} °E",
)
print("Elevation cuts in the volume:", radar.attrs["actual_elevation_cuts"])
print(f"Sweep 0: {float(sweep.sweep_fixed_angle):.2f}° elevation,", dict(sweep.sizes))
print(f"Range: {float(sweep.range.min()) / 1000:.1f} to {float(sweep.range.max()) / 1000:.1f} km")
print("Ray times:", str(sweep.time.min().values)[:19], "to", str(sweep.time.max().values)[:19])
pd.DataFrame(
{
"long_name": [sweep[name].attrs.get("long_name") for name in moments],
"units": [sweep[name].attrs.get("units") for name in moments],
"dtype": [str(sweep[name].dtype) for name in moments],
"valid_gates": [int(sweep[name].count()) for name in moments],
},
index=pd.Index(moments, name="moment"),
)Radar: KTLX at 35.333 °N, -97.278 °E
Elevation cuts in the volume: 14
Sweep 0: 0.48° elevation, {'azimuth': 720, 'range': 1832}
Range: 2.1 to 459.9 km
Ray times: 2024-05-06T20:01:16 to 2024-05-06T20:02:27
| long_name | units | dtype | valid_gates | |
|---|---|---|---|---|
| moment | ||||
| DBZH | Equivalent reflectivity factor H | dBZ | float64 | 351051 |
| ZDR | Log differential reflectivity H/V | dB | float64 | 343998 |
| PHIDP | Differential phase HV | degrees | float64 | 343998 |
| RHOHV | Correlation coefficient HV | unitless | float64 | 343998 |
| CCORH | Clutter Correction H | unitless | float64 | 70843 |
Sweep 0 is a position in the volume, not an elevation. Low angles are split
cuts, scanned once for reflectivity and the dual-polarization moments and again
for velocity, so radial velocity is not on sweep 0 at all. inspect() lists
every sweep from the file's metadata, without decoding a moment: its angle, the
moments open_nexrad would return, and when it was scanned. Choose sweeps
there and open them by index.
volume = item.inspect().nexrad
print("Volume coverage pattern:", volume.vcp)
table = pd.DataFrame(
{
"angle": [round(s.fixed_angle, 2) for s in volume.sweeps],
"moments": [" ".join(s.moments) for s in volume.sweeps],
"start": [f"{s.start:%H:%M:%S}" for s in volume.sweeps],
"SAILS": [s.sails for s in volume.sweeps],
}
)
lowest = min(s.fixed_angle for s in volume.sweeps)
velocity = [s.index for s in volume.sweeps if s.fixed_angle == lowest and "VRADH" in s.moments]
print("Lowest-angle velocity sweeps:", velocity)
table.head(8)Volume coverage pattern: 35
Lowest-angle velocity sweeps: [1, 7]
| angle | moments | start | SAILS | |
|---|---|---|---|---|
| 0 | 0.48 | DBZH ZDR PHIDP RHOHV CCORH | 20:01:16 | False |
| 1 | 0.48 | DBZH VRADH WRADH | 20:02:28 | False |
| 2 | 0.88 | DBZH ZDR PHIDP RHOHV CCORH | 20:02:54 | False |
| 3 | 0.88 | DBZH VRADH WRADH | 20:04:07 | False |
| 4 | 1.32 | DBZH ZDR PHIDP RHOHV CCORH | 20:04:32 | False |
| 5 | 1.32 | DBZH VRADH WRADH | 20:05:38 | False |
| 6 | 0.48 | DBZH ZDR PHIDP RHOHV CCORH | 20:06:04 | True |
| 7 | 0.48 | DBZH VRADH WRADH | 20:07:16 | True |
A first look

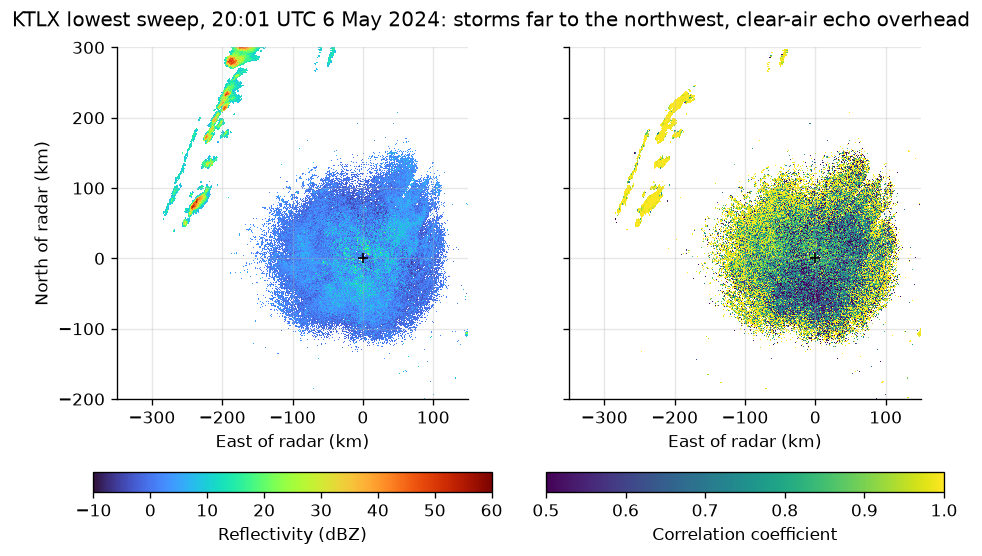

Reflectivity and correlation coefficient on the lowest sweep, placed east and
north of the radar by azimuth and range. Correlation coefficient (RHOHV)
measures how alike the horizontal and vertical pulses return: near 1 for
rain and hail, lower for insects, birds, and ground clutter. It is drawn only
where there is reflectivity.
def edges(centres: np.ndarray) -> np.ndarray:
"""Cell edges halfway between centres, extended half a step at each end."""
middle = (centres[:-1] + centres[1:]) / 2
return np.concatenate([[2 * centres[0] - middle[0]], middle, [2 * centres[-1] - middle[-1]]])
ordered = sweep.sortby("azimuth")
azimuth = np.deg2rad(edges(ordered.azimuth.values))[:, None]
ground = edges(ordered.range.values)[None, :] * np.cos(np.deg2rad(float(sweep.sweep_fixed_angle)))
east, north = np.sin(azimuth) * ground / 1000, np.cos(azimuth) * ground / 1000
reflectivity = ordered["DBZH"]
correlation = ordered["RHOHV"].where(reflectivity.notnull())
fig, (left, right) = plt.subplots(1, 2, sharey=True, layout="constrained")
panels = [
(left, reflectivity, "turbo", (-10, 60), "Reflectivity (dBZ)"),
(right, correlation, "viridis", (0.5, 1.0), "Correlation coefficient"),
]
for ax, values, cmap, (low, high), label in panels:
mesh = ax.pcolormesh(east, north, values, cmap=cmap, vmin=low, vmax=high, rasterized=True)
fig.colorbar(mesh, ax=ax, label=label, orientation="horizontal", shrink=0.9)
ax.plot(0, 0, marker="+", color="black")
ax.set_aspect("equal")
ax.set(xlim=(-350, 150), ylim=(-200, 300), xlabel="East of radar (km)")
left.set_ylabel("North of radar (km)")
fig.suptitle(
f"KTLX lowest sweep, {item.asset.time.start:%H:%M} UTC 6 May 2024: storms far to the "
"northwest, clear-air echo overhead"
)
plt.show()
near = ordered.range <= 150_000
far = ordered.range >= 200_000
near_echo = reflectivity.where(near)
near_correlation = correlation.where(near)
strong_far = correlation.where(far & (reflectivity >= 40))
print(f"Echo within 150 km: {int(near_echo.count()):,} gates, max {float(near_echo.max()):.1f} dBZ")
print(f" below 15 dBZ: {float((near_echo < 15).sum() / near_echo.count()):.0%}")
low = float((near_correlation < 0.9).sum() / near_correlation.count())
print(f" correlation below 0.9: {low:.0%}")
high = float((strong_far >= 0.95).sum() / strong_far.count())
print(f"Echo of 40 dBZ or more beyond 200 km: {int(strong_far.count()):,} gates")
print(f" correlation of 0.95 or more: {high:.0%}")
print(f"Strongest echo: {float(reflectivity.max()):.1f} dBZ")Echo within 150 km: 338,736 gates, max 34.0 dBZ
below 15 dBZ: 98%
correlation below 0.9: 76%
Echo of 40 dBZ or more beyond 200 km: 221 gates
correlation of 0.95 or more: 100%
Strongest echo: 65.0 dBZ
At 20:01 UTC the only storms KTLX could see were a line of cells about 250 to 360 km to the northwest, with correlation near 1. The echo filling the first 150 km around the radar is weak, 98% of it below 15 dBZ, and three quarters of it has a correlation coefficient below 0.9: insects and birds in the afternoon boundary layer, not precipitation. Reflectivity alone would not separate the two. At 300 km the lowest beam is several kilometres above the ground, so the distant storms are seen only in their upper parts.
Pin and cite
verify checks the cached file against the lockfile's checksum. Keep the
manifest and lockfile with your analysis; the citation below is what a
methods section needs, and usdata cite dataset.yaml prints the same.
assert verify(manifest) == []
for citation in cite_lockfile(manifest):
print(citation.as_text())noaa:nexrad-level2
NEXRAD on AWS was accessed on 2026-10-09 from https://registry.opendata.aws/noaa-nexrad
homepage: https://registry.opendata.aws/noaa-nexrad/
license: US Government Work (public domain)
terms: https://www.noaa.gov/information-technology/open-data-dissemination
retrieved: 2026-10-09; 1 checksummed asset (9,622,867 bytes) pinned by usdata 0.34.0
sources: 1
What was awkward
- The sweep node does not carry the radar's position.
radar["/sweep_0"].to_dataset()has nolatitudeorlongitude, so xradar's owngeoreference()on it fails withAttributeError: 'Dataset' object has no attribute 'longitude', and the map above places gates by hand on a flat plane, without beam height or earth curvature. - The whole volume is downloaded even when one sweep is wanted;
sweep=0saves memory, not bytes. - Moments decode as float64, 11 MB per moment for one sweep, from data stored as one or two bytes per gate.
- Selecting one volume by window depended on the volume coverage pattern: five
minutes holds one clear-air volume but can hold two in precipitation mode,
and nothing in the manifest said which the radar was in. The manifest now
asks for the volume nearest 20:00 UTC with
select, which keeps one either way. sweep=takes a position, and which position holds which angle and moment depends on the volume coverage pattern; the sweep listing frominspect()is the way to find the one wanted.- A volume's time is its start, but each ray has its own time and the lowest sweep alone spans more than a minute; matching a sweep to an event needs the ray times, not the file name.
See the NEXRAD guide and the radar and satellite guide for choosing volumes by time, and the event-context study for a volume matched to a tornado report later that evening.
